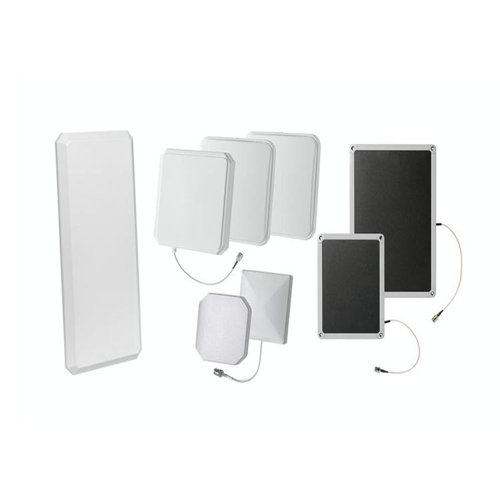

Họ Ăng ten RFID Zebra
Danh mục ăng-ten RFID mang lại sự linh hoạt và hiệu suất cho mọi môi trường doanh nghiệp. Đơn giản để triển khai và vận hành kết hợp với đầu đọc RFID cố định, họ ăng-ten RFID thuộc nhóm Zebra giúp mọi cài đặt RFID trở nên dễ dàng, hiệu quả và hiệu suất cao. Mặc dù mỗi loại đều có bộ khả năng riêng, tất cả đều cung cấp tính linh hoạt, sức mạnh và khả năng tương thích tức thì và sẽ vượt trội trong nhiều ứng dụng.
| AN510 | AN520 | |
| Polarization | Right-hand circular | RHCP (Right Hand Circular Polarized) |
| Connector | SMA female | SMA female |
| Connector Location | Side mounted | Side connector |
| Mounting Options | Flush mount or VESA mount | Flush mount |
| Casing/Materials | UV-Resistant ABS | UV-Resistant ABS |
| Gain | 8.5 dBic | 5.5 dBiC typical |
| VSWR (Return Loss) | 1.3:1 | 1.4 typical |
| Front to Back Ratio | 20 dB | -10 dB |
| 3 dB Beam Width | 68° in both planes | 115° in both planes |
| Maximum Power | 3 Watts | 3 Watts |
| Axial Ratio | 1 dB | 2 dB typical |
| Vibration | MIL-STD-810G | IEC60068-2-64 |
| Humidity | 72 Hours @ 85°C relative humidity | 72 Hours @ 85°C relative humidity |
| Operating Temp. | -20° to +55°C/-4° to +131°F | -40° to +65°C/-40° to +149°F |
| Storage Temp. | -30° to +65°C/-22° to +149°F | -40° to +65°C/-40° to +149°F |
| Sealing | IP67 | IP68 |
| Dimensions | 250 mm x 250 mm x 14 mm/ 9.85 in. x 9.85 in. x 0.55 in. | 150 mm x 150 mm x 14 mm/ 5.9 in. x 5.9 in. x 0.55 in. |
| Weight | 1.6 lbs./0.75 kg | 0.25 kg/0.55 lbs |
| AN610 | AN620 | AN650 | |
| Polarization | Left-hand circular | Left-hand circular | RHCP (Right Hand Circular Polarized) |
| Connector | N-Type Female | N-Type Female | SMA female side fly lead (300 mm/1 ft.) |
| Connector Location | Pigtail – Side | Pigtail – Side | |
| Mounting Options | Flush mount | Flush mount | |
| Casing/Materials | Aluminum with Kydex Casing | Aluminum with Kydex Casing | |
| Gain | 5.0 dBic | 7.0 dBic | 9 dBiC typical |
| VSWR (Return Loss) | 1.4:1 | 1.4:1 | 1.4 typical |
| Front to Back Ratio | 18 dB | 22 dB | 24 dB |
| 3 dB Beam Width | 80° in both planes | 75° in horizontal plane, 48° in vertical plane | 20° in xz-plane, 80° in yz-plane |
| Maximum Power | 6 Watts | 6 Watts | 3 Watts |
| Axial Ratio | < 2 dB | < 2 dB | 2 dB typical |
| Vibration | IEC-68-2-6 (10 to 150 Hz, 0.5 g, one hour in each of two axes) (Random Vibration) | IEC-68-2-6 (10 to 150 Hz, 0.5 g, one hour in each of two axes) (Random Vibration) | |
| Humidity | IEC-68-2-30 (-13°F to 104°F, -25°C to 40°C) 24 hour cycles of 90% relative humidity | IEC-68-2-30 (-13°F to 104°F, -25°C to 40°C) 24 hour cycles of 90% relative humidity | |
| Operating Temp. | -20° to +55°C/-4° to +131°F | -20° to +55°C/-4° to +131°F | -20° to +55°C/-4° to +131°F |
| Storage Temp. | -30° to +65°C/-22° to +149°F | -30° to +65°C/-22° to +149°F | 30° to +65°C/-22 to +149°F |
| Sealing | IP54 | IP54 | IP65 |
| Dimensions | 275 mm x 214 mm x 12 mm/ 10.8 in. x 8.5 in. x 0.3 in. | 391 mm x 275 mm X 12 mm/ 15.39 in. x 10.82 in. x 0.47 in. | 915 mm x 305 mm X 8 mm/ 36.02 in. x 12.00 in. x 0.31 in. |
| Weight | 1.3 lbs./0.6 kg | 2.2 lbs./1.0 kg | 2.4 kg/5.29 lbs. Gross: 2.8 kg/6.17 lbs |
| Radome Material | Fire retardant ABS | ||
| Anti-static Protection | Yes, DC grounded | ||
| Radome Material | Fire retardant ABS | ||
| Nominal Impedance | 50 Ω | ||
| Antenna Detection | 10 K Ω resistance |
| AN720 | |
| Polarization | Left-hand circular |
| Connector | N-Type Female |
| Connector Location | Rear |
| Mounting Options | Articulating mounting bracket included |
| Casing/Materials | Aluminum with white plastic cover |
| Gain | US/Canada: 3.0 dBiL; EU: 3.5 dBiL |
| VSWR (Return Loss) | 1.5:1 |
| Front to Back Ratio | 8 dB |
| 3 dB Beam Width | 100° in both planes |
| Maximum Power | 10 Watts |
| Axial Ratio | 2 dB |
| Vibration | MIL-STD-810 |
| Humidity | IEC-68-2-30 |
| Operating Temp. | -25° to +70°C/-13° to +158°F |
| Storage Temp. | -40° to +70°C/-40° to +158°F |
| Sealing | IP67 |
| Dimensions | 132.8 mm x 132.8 mm x 18.1 mm/ 5.2 in. x 5.2 in. x 0.7 in. |
| Weight | 0.8 lbs./0.37 kg |
| AN440 | AN480 | |
| Polarization | 1 x Left-hand circular / 1 x Right-hand circular | Left-hand circular or Right-hand circular |
| Connector | Dual N-Type Female | N-Type Female |
| Connector Location | Rear | Rear |
| Mounting Options | Mounting studs provided | Mounting studs provided |
| Casing/Materials | UV Stable ASA | Aluminum with white plastic cover |
| Gain | US/Canada: 6.0 dBiL | 6.0 dBiL |
| VSWR (Return Loss) | 1.22:1 | 1.3:1 |
| Front to Back Ratio | 20 dB | 18 dB |
| 3 dB Beam Width | 70° in both planes | 65° in both planes |
| Maximum Power | 10 Watts | 2 Watts |
| Axial Ratio | 1 dB typical | 1.5 dB typical |
| Vibration | MIL-STD-810G, Method 507.5, Procedure II – Aggravated, IEC-68-2-6 (10 to 150 Hz, 0.5g, one hour in each of two axes – random vibration) | IEC-68 series |
| Humidity | IEC-68-2-30 (-25° to +40°C / -13° to +104°F) 24 hour cycles of 90% relative humidity | IEC-68-2-30 |
| Operating Temp. | -30° to +70°C/-22° to +158°F | -25° to +70°C/-13° to +158°F |
| Storage Temp. | -40° to +85°C/-40° to +185°F | -40° to +70°C/-40° to +158°F |
| Sealing | IP67 | IP54 |
| Dimensions | 575.1 mm x 259.1 mm x 33.52 mm/ 22.6 in. x 10.2 in. x 1.32 in. | 259.1 mm x 259.1 mm x 33.5 mm/ 10.2 in. x 10.2 in. x 1.32 in. |
| Weight | 7.0 lbs /3.2 kg | 2.5 lbs./1.13 kg |
