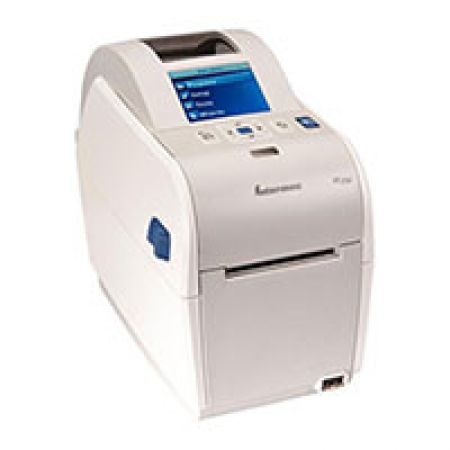

| Model: Intermec PC23d | |
| Dimension | 177 mm x 125 mm x 215 mm (6.9 in x 4.9 in x 8.5 in) |
| Weight | 1.45 kg (3.2 lb) |
| Resolution | 8 dots/mm (203 dpi) or 12 dots/mm (300 dpi) |
| Memory | Standard: 128 MB Flash, 128 MB RAM (DDR2)
Optional: Up to 32 GB via user USB thumbdrive |
| Maximum Print Width | 203 dpi – max. 56 mm (2.2 in); 300 dpi – max. 54 mm (2.1 in) |
| Maximum Print Speed | Selectable up to 8 ips (203.2 mm/ sec) for 203 dpi; 6 ips (152.4 mm/sec) for 300 dpi |
| Media Sensors | Standard (LCD) |
| Label Length | Min. 6.35 mm (0.25 in) |
| Media Width | Max. 60 mm (2.36 in); Min. 15 mm (0.59 in) |
| Ribbon Standard Length | 12.7 mm (0.5 in): 91 m (299 ft); 25.4 mm (1.0 in): 300 m (984 ft) |
| Ribbon Width | 25.4 mm (1.0 in) – ribbon only, core width must be 111 mm (4.37 in) |
| Fonts and Graphics | Graphics: Native support for one-bit BMP, GIF, PCX and PNG graphics formats
Resident Fonts: Century Schoolbook, CG Times, CG Times Bold, Letter Gothic, Andale Mono, Andale Mono Bold, Univers, Univers Bold, Univers Condensed Bold, Univers Extra Condensed, OCR-A, OCR-B |
