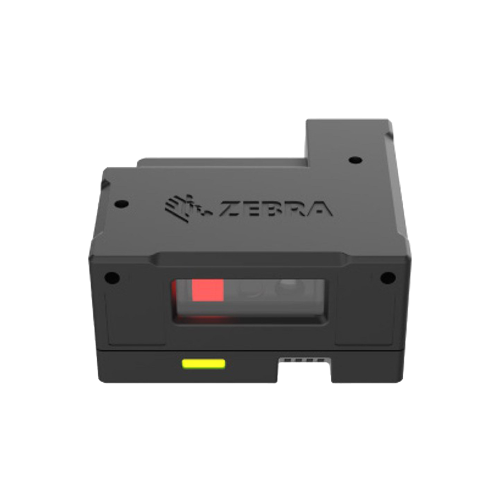

Máy đọc mã vạch Zebra MS4727

Dimensions

• Standard Versions:

1.10 in. H x 2.17 in. W x 1.89 in. D

• Flush-Mount Versions:

2.98 in. H x 4.13 in. W x 4.04 in. D

Weight

• Standard Versions: 3.92 oz/111 g +/- 5% Flush-Mount Versions: 6.67 oz/189 g +/- 5%

Power

• Maximum: 5 VDC +/- 5% at <500 mA

Scanner

• 1D: All major 1D barcodes
• 2D: All major 2D barcodes including PDF417, DataMatrix, QR Code, Aztec, Composite Codes and MaxiCode PDF417, DataMatrix, QR Code, Aztec, Composite Codes and MaxiCode

Ambient Light

• Total darkness to 10,000 ft. candles (107,369 lux)

Image File Formats

• BMP, TIFF, JPG

Supported Host Interfaces

• USB Certified (USB Full Speed)

Operating Temp

• -22° to 131°F/-30° to 55°C

Storage Temp

• -40° to 158°F/-40° to 70°C

Humidity

• Operating:

95% RH, non-condensing at 55°C

• Storage:

95% RH, non-condensing at 70°C

• Flush Mount Versions: 85% RH, non-condensing at 70°C

Sealing

• Standard Versions: IP54
• Flush-Mount Versions: Dust-sealed

Drop Specification

• Standard Versions designed to withstand multiple drops at 5.0 ft./1.5 m to concrete at room temperature

Image Sensor

• 1280 x 800 pixels

Imager Field of View

• 48° H x 30° V Nominal
• Flush-Mount Versions: 47.3° H x 30° V

Light Source

• Aiming Pattern:

Circular 525 nm Green LED

• Illumination:

White LED

OCR Capability

• OCR-A, OCR-B, MICR E13B, US Currency Serial Number

Product Safety

• EC/EN 62368-1, UL/cUL 62368-1
